Forced Performance HTZ Blue Turbocharger 84mm Subaru WRX 2002-2007 / STI 2004-2021
Forced Performance HTZ Blue Turbocharger 84mm Subaru WRX 2002-2007 / STI 2004-2021
Forced Performance
Couldn't load pickup availability
- ✔ Verified fitment & authentic brands
- ✔ Secure checkout via Shopify, Stripe, and PayPal
- ✔ Enthusiast-run support — not a marketplace
- ✔ Fair resolution on damaged or incorrect orders
Every product is sourced from authorized manufacturers or distributors. If something isn’t right with fitment or condition, we’ll work with you to resolve it fairly.
NO GUESSWORK,
JUST PARTS THAT WORK.
Let’s finish that car.
PRODUCT DETAILS ▾

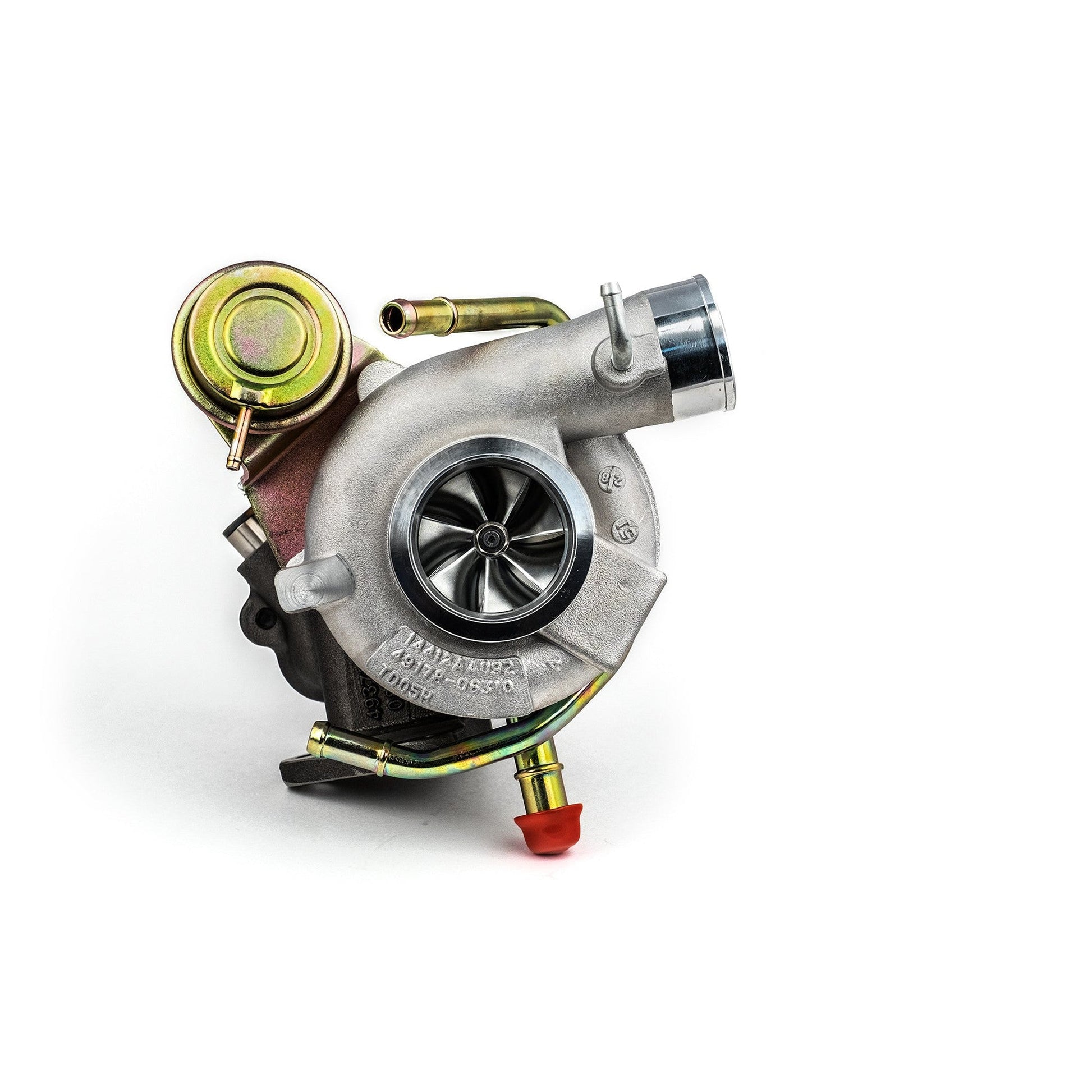

The FP Blue turbocharger for the Subaru WRX/STI features the 73mm HTZ compressor section with your choice of 58MM stock appearing cover or 84MM Flow Advancement Port compressor cover coupled to the 8cm2 turbine section. This combo produces the best balance of spool and power available on this platform. The FP Blue flows 57LB a minute capable of producing upwards of 475WHP.
Forced Performance Subaru Blue Turbocahrger features:
- Compressor wheel - 73HTZ
- Flow rating - 57LB per minute
- CW Measurements - 52.6MM Inducer / 73MM Exducer
- TW Measurements - 60.8MM Inducer / 54MM Exducer
- Compressor Housing - 84MM FAP Cover
- Turbine Housing - FP 8CM Subaru Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Included
JR Tuned Review of the Blue including dyno sheet above.
Our Project Toilet Bowl (2000 Outback sports) hit the dyno today to do some testing on the new Forced Performance Turbochargers Blue stock location bolt on turbo. We have had it for weeks to test at the track, but the weather has really fucked that up for us. So we decided to thrown it on the dyno and see what kind of of numbers it could produce. Full boost by 3800rpm and able to hold 27-28psi to redline (7200) This thing spools like the HTA71 but makes power like a HTZ Green
Pump gas 93 = 430whp / 445tq E85 = 524whp / 527tq
Prime Motoring 2.5 Hybrid built by VinceBuilt Stock 2.0 cams/heads with IAG chambering GrimmSpeed 44mm external uppipe Grimspeed TMIC IAG Performance AOS IAG TGVD COBB Tuning v3 accessport SD with a JrTuned calibration =) SouthBay Fuel Injectors Inc 1600cc Injectors
In the past we have sold two different types of oil lines. They were known as Type 1 or Type 2, and it was too easy to get confused as to the type needed due to various model differences across the years. To solve this problem, we developed a new oil feed line that includes the parts for both Type 1 and Type 2 cars. The installation instructions below will show which parts to use based on which type of car you have, which is why we are still using the Type 1 and 2 designators.
Subaru Oil Feed Line Installation Instructions.
Type 1 - Type 1 instructions are to be used if at the oil feed location off the back of the head only feeds the turbo. See the diagram on the right below, if you have that type of oil line you will use the Type 1 instructions. This was formerly known as an non-AVCS line.
Type 2 - Type 2 instructions are to be used if at the oil feed location off the head splits and feeds the turbo and the AVCS solenoid. See the diagram on the left below, if you have that type of oil line you will use Type 2 instructions. This was formerly known as the AVCS Line.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
WHY WE CARRY THIS ▾
We only list parts we’d run ourselves or recommend to a friend building a real car. If it feels vague, unverified, or inconsistent, it doesn’t make the cut.
- Fitment-first mindset — no “universal” roulette
- Brand reputation matters — we favor proven manufacturing
- Support that actually responds with real answers
WHAT TO EXPECT ▾
This is the clean path: correct fitment, clean install, and results that match the intent.
- Install-ready experience with correct mounting where provided
- Finish that holds up to real driving, not just photos
- Selections on this page drive the exact fitment shipped
TRUST, BUILT INTO THE PROCESS.
Anyone can list parts. We curate what belongs on a serious build. Our goal is simple: fewer surprises, cleaner installs, and confidence when you hit “Buy.”
Fitment checked
We prioritize vehicle-specific listings and clear selection logic so you’re not gambling on compatibility.
Brand discipline
Proven manufacturing and consistent quality matter more than hype. We bias toward what actually holds up.
Real support
If you have a question, you’ll get a human answer that helps you finish the build — not a copy-paste shrug.
The FP Blue turbocharger for the Subaru WRX/STI features the 73mm HTZ compressor section with your choice of 58MM stock appearing cover or 84MM Flow Advancement Port compressor cover coupled to the 8cm2 turbine section. This combo produces the best balance of spool and power available on this platform. The FP Blue flows 57LB a minute capable of producing upwards of 475WHP.
Forced Performance Subaru Blue Turbocahrger features:
- Compressor wheel - 73HTZ
- Flow rating - 57LB per minute
- CW Measurements - 52.6MM Inducer / 73MM Exducer
- TW Measurements - 60.8MM Inducer / 54MM Exducer
- Compressor Housing - 84MM FAP Cover
- Turbine Housing - FP 8CM Subaru Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Included
JR Tuned Review of the Blue including dyno sheet above.
Our Project Toilet Bowl (2000 Outback sports) hit the dyno today to do some testing on the new Forced Performance Turbochargers Blue stock location bolt on turbo. We have had it for weeks to test at the track, but the weather has really fucked that up for us. So we decided to thrown it on the dyno and see what kind of of numbers it could produce. Full boost by 3800rpm and able to hold 27-28psi to redline (7200) This thing spools like the HTA71 but makes power like a HTZ Green
Pump gas 93 = 430whp / 445tq E85 = 524whp / 527tq
Prime Motoring 2.5 Hybrid built by VinceBuilt Stock 2.0 cams/heads with IAG chambering GrimmSpeed 44mm external uppipe Grimspeed TMIC IAG Performance AOS IAG TGVD COBB Tuning v3 accessport SD with a JrTuned calibration =) SouthBay Fuel Injectors Inc 1600cc Injectors
In the past we have sold two different types of oil lines. They were known as Type 1 or Type 2, and it was too easy to get confused as to the type needed due to various model differences across the years. To solve this problem, we developed a new oil feed line that includes the parts for both Type 1 and Type 2 cars. The installation instructions below will show which parts to use based on which type of car you have, which is why we are still using the Type 1 and 2 designators.
Subaru Oil Feed Line Installation Instructions.
Type 1 - Type 1 instructions are to be used if at the oil feed location off the back of the head only feeds the turbo. See the diagram on the right below, if you have that type of oil line you will use the Type 1 instructions. This was formerly known as an non-AVCS line.
Type 2 - Type 2 instructions are to be used if at the oil feed location off the head splits and feeds the turbo and the AVCS solenoid. See the diagram on the left below, if you have that type of oil line you will use Type 2 instructions. This was formerly known as the AVCS Line.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
