HKS Full Intercooler Kit – 2023+ Honda Civic Type R FL5 (13001-AH007)
HKS Full Intercooler Kit – 2023+ Honda Civic Type R FL5 (13001-AH007)
HKS
Couldn't load pickup availability
- ✔ Verified fitment & authentic brands
- ✔ Secure checkout via Shopify, Stripe, and PayPal
- ✔ Enthusiast-run support — not a marketplace
- ✔ Fair resolution on damaged or incorrect orders
Every product is sourced from authorized manufacturers or distributors. If something isn’t right with fitment or condition, we’ll work with you to resolve it fairly.
NO GUESSWORK,
JUST PARTS THAT WORK.
Let’s finish that car.
PRODUCT DETAILS ▾

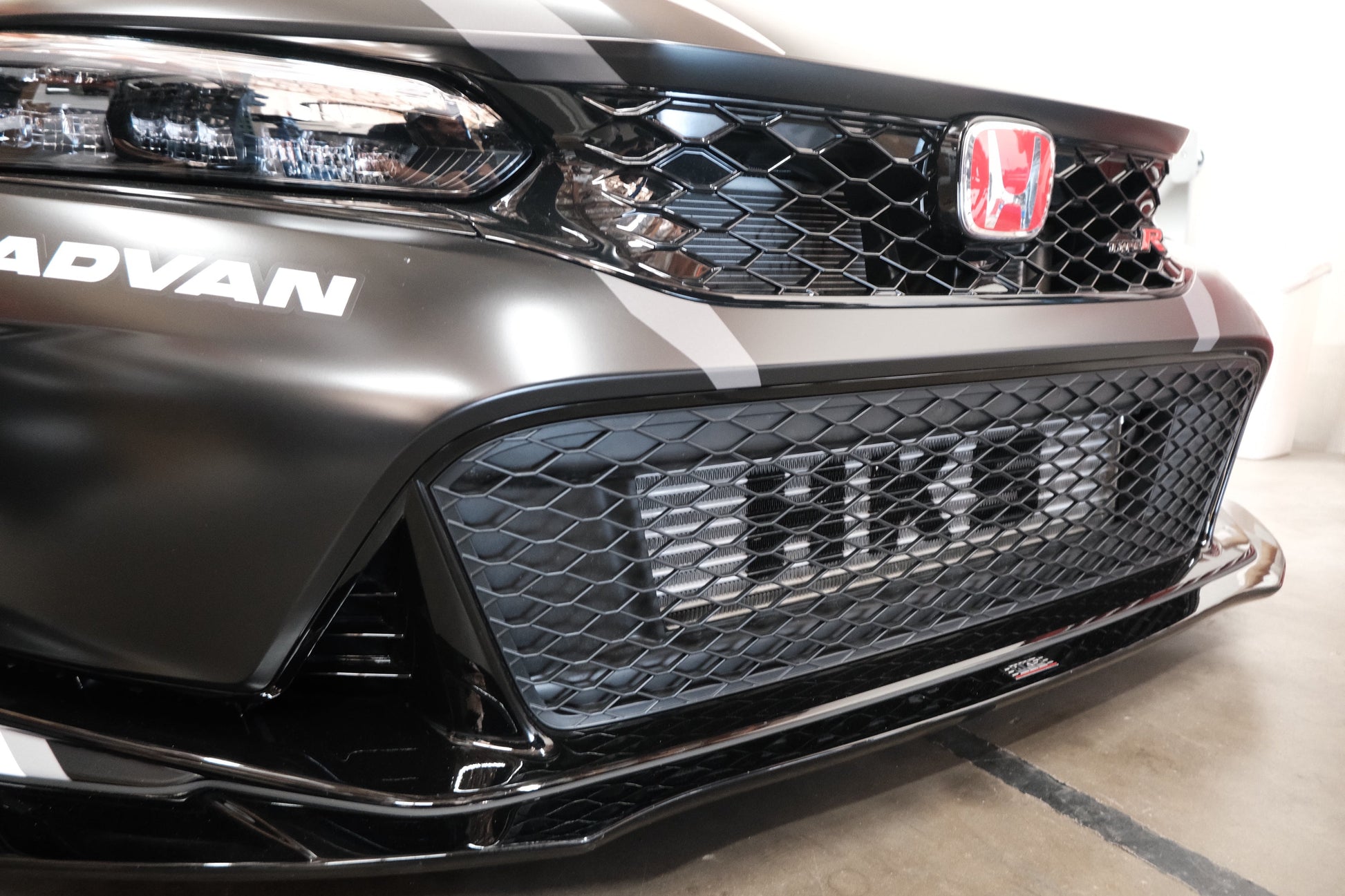

The HKS R-Type Intercooler & Piping Kit (part 13001-AH007) is a complete front-mount intercooler upgrade for the 2023+ Honda Civic Type R (FL5, K20C). It combines a larger, thicker R-Type core with HKS aluminum piping. In HKS testing it lowered intercooler outlet temperature from 56.0°C to 30.3°C at 7,000 rpm.
Fitment
- Honda Civic Type R FL5, 2023 and newer (HKS lists 09/2022-on production)
Specifications
- Manufacturer part number: 13001-AH007
- Core size: 695 x 178 x 100mm (stock: 639 x 158 x 64mm), 22.4% more core area
- Core: 10 fins / 9 tubes with cast aluminum end tanks (stock: resin tanks)
- Mounting: factory location, front mount
- Piping: aluminum bent and cast pipes, 60mm inlet pipe (stock 55mm rubber hose), mirror-buffed finish
- Install time: about 4 hours
HKS test results (vs stock)
- Intercooler outlet temperature at 7,000 rpm: 30.3°C vs 56.0°C
- Cooling efficiency at 7,000 rpm: 88% vs 67%
- Power: 245 kW (333 PS) at 6,500 rpm vs 243 kW (331 PS); torque 449.5 Nm vs 445.8 Nm
What's in the box
- R-Type intercooler core with masking sheet for logo painting
- Aluminum bent pipes and cast pipes (inlet and outlet)
- Silicone hoses and hose bands
- Brackets (inlet and outlet)
- Special bolts and nuts
Good to know
Installing the intercooler requires trimming the air guide inside the front bumper and relocating the outside air temperature sensor (the bumper reinforcement is not modified). Installing the piping requires shaving a bracket on the vehicle body.
FAQ
What is the difference between 13001-AH007, 13001-AH008 and 13002-AH002?
13001-AH007 is the full kit (core plus piping). 13001-AH008 is the core only and 13002-AH002 is the piping only.
Does it add power on a stock FL5?
Very little on its own (HKS measured +2 kW). The main benefit is lower charge air temperature: 30.3°C vs 56.0°C at 7,000 rpm in HKS testing.
How long does shipping take?
Delivery times vary by part because many items ship directly from the manufacturer or distributor. Message us before ordering and we'll confirm current lead time.
Can I return it?
Yes. Returns are accepted within 30 days of delivery. The customer pays return shipping, and a restocking fee of up to 20% may apply.
WHY WE CARRY THIS ▾
We only list parts we’d run ourselves or recommend to a friend building a real car. If it feels vague, unverified, or inconsistent, it doesn’t make the cut.
- Fitment-first mindset — no “universal” roulette
- Brand reputation matters — we favor proven manufacturing
- Support that actually responds with real answers
WHAT TO EXPECT ▾
This is the clean path: correct fitment, clean install, and results that match the intent.
- Install-ready experience with correct mounting where provided
- Finish that holds up to real driving, not just photos
- Selections on this page drive the exact fitment shipped
TRUST, BUILT INTO THE PROCESS.
Anyone can list parts. We curate what belongs on a serious build. Our goal is simple: fewer surprises, cleaner installs, and confidence when you hit “Buy.”
Fitment checked
We prioritize vehicle-specific listings and clear selection logic so you’re not gambling on compatibility.
Brand discipline
Proven manufacturing and consistent quality matter more than hype. We bias toward what actually holds up.
Real support
If you have a question, you’ll get a human answer that helps you finish the build — not a copy-paste shrug.
The HKS R-Type Intercooler & Piping Kit (part 13001-AH007) is a complete front-mount intercooler upgrade for the 2023+ Honda Civic Type R (FL5, K20C). It combines a larger, thicker R-Type core with HKS aluminum piping. In HKS testing it lowered intercooler outlet temperature from 56.0°C to 30.3°C at 7,000 rpm.
Fitment
- Honda Civic Type R FL5, 2023 and newer (HKS lists 09/2022-on production)
Specifications
- Manufacturer part number: 13001-AH007
- Core size: 695 x 178 x 100mm (stock: 639 x 158 x 64mm), 22.4% more core area
- Core: 10 fins / 9 tubes with cast aluminum end tanks (stock: resin tanks)
- Mounting: factory location, front mount
- Piping: aluminum bent and cast pipes, 60mm inlet pipe (stock 55mm rubber hose), mirror-buffed finish
- Install time: about 4 hours
HKS test results (vs stock)
- Intercooler outlet temperature at 7,000 rpm: 30.3°C vs 56.0°C
- Cooling efficiency at 7,000 rpm: 88% vs 67%
- Power: 245 kW (333 PS) at 6,500 rpm vs 243 kW (331 PS); torque 449.5 Nm vs 445.8 Nm
What's in the box
- R-Type intercooler core with masking sheet for logo painting
- Aluminum bent pipes and cast pipes (inlet and outlet)
- Silicone hoses and hose bands
- Brackets (inlet and outlet)
- Special bolts and nuts
Good to know
Installing the intercooler requires trimming the air guide inside the front bumper and relocating the outside air temperature sensor (the bumper reinforcement is not modified). Installing the piping requires shaving a bracket on the vehicle body.
FAQ
What is the difference between 13001-AH007, 13001-AH008 and 13002-AH002?
13001-AH007 is the full kit (core plus piping). 13001-AH008 is the core only and 13002-AH002 is the piping only.
Does it add power on a stock FL5?
Very little on its own (HKS measured +2 kW). The main benefit is lower charge air temperature: 30.3°C vs 56.0°C at 7,000 rpm in HKS testing.
How long does shipping take?
Delivery times vary by part because many items ship directly from the manufacturer or distributor. Message us before ordering and we'll confirm current lead time.
Can I return it?
Yes. Returns are accepted within 30 days of delivery. The customer pays return shipping, and a restocking fee of up to 20% may apply.
